Overfill Prevention Valves/Assemblies -A0025 Telescoping Diffuser

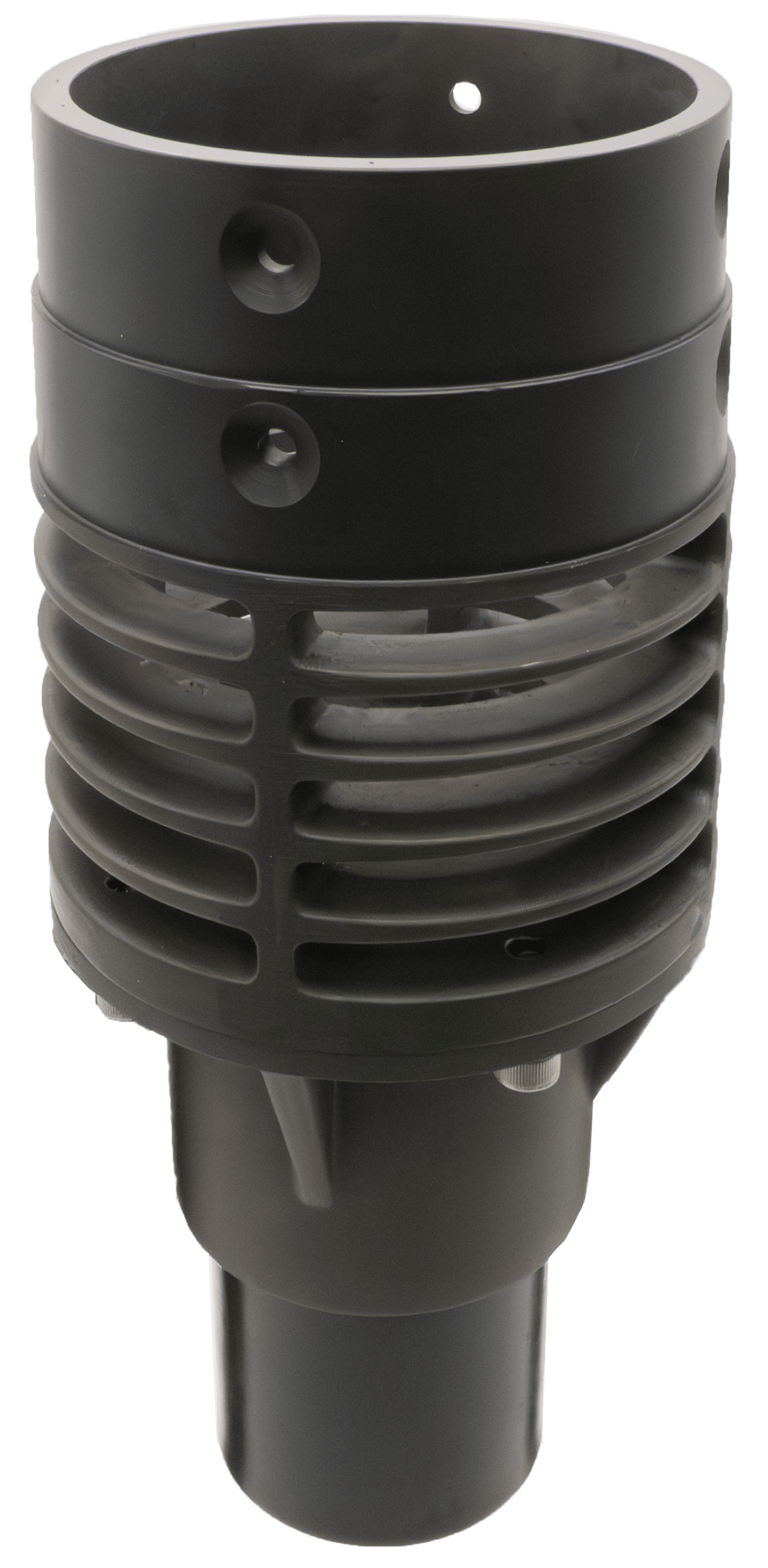

A0025-Telescoping Diffuser affixes to the bottom of a Overfill Prevention Valve or a drop tube to control the flow of fuel during the tank filling operation. The diffuser disperses fuel laterally to prevent stirring up debris and promotes an even mixing of fuel. The affixture is hard coated with anodized aluminum for fuel resistance and includes a telescoping HDPE bottom to prevent damage to the tank. No special adapter is needed to attach the diffuser.
*Attaches to Emco, OPW, and Franklin drop tubes
Material
Body: Anodized Aluminum
Hardware: Stainless Steel
Telescoping Base: HDPE
Installation Instructions
Sales Literature
Reference Video
Cross Reference
A0025 Telescoping Diffuser
| wdt_ID | wdt_created_by | wdt_created_at | wdt_last_edited_by | wdt_last_edited_at | Part Number | Description | Weight (lbs) | Shipping DIMS |
|---|---|---|---|---|---|---|---|---|
| 1 | kdoyle | 09/03/2026 02:04 PM | kdoyle | 09/03/2026 02:05 PM | A0025-001 | 4" Diffuser, Telescoping Open, Slip-On, Anodized | 1.75 | 4" x 5" x 7.5" |
| 2 | kdoyle | 09/03/2026 02:06 PM | kdoyle | 09/03/2026 02:06 PM | A0025-002 | 4" Diffuser, Telescoping Closed, Slip-On, Anodized | 1.75 | 4" x 5" x 7.5" |
